openvidu-recording-basic-node#

Source code

This tutorial is a simple video-call application, built upon Node.js server and JavaScript client tutorials, and extends them by adding recording capabilities:

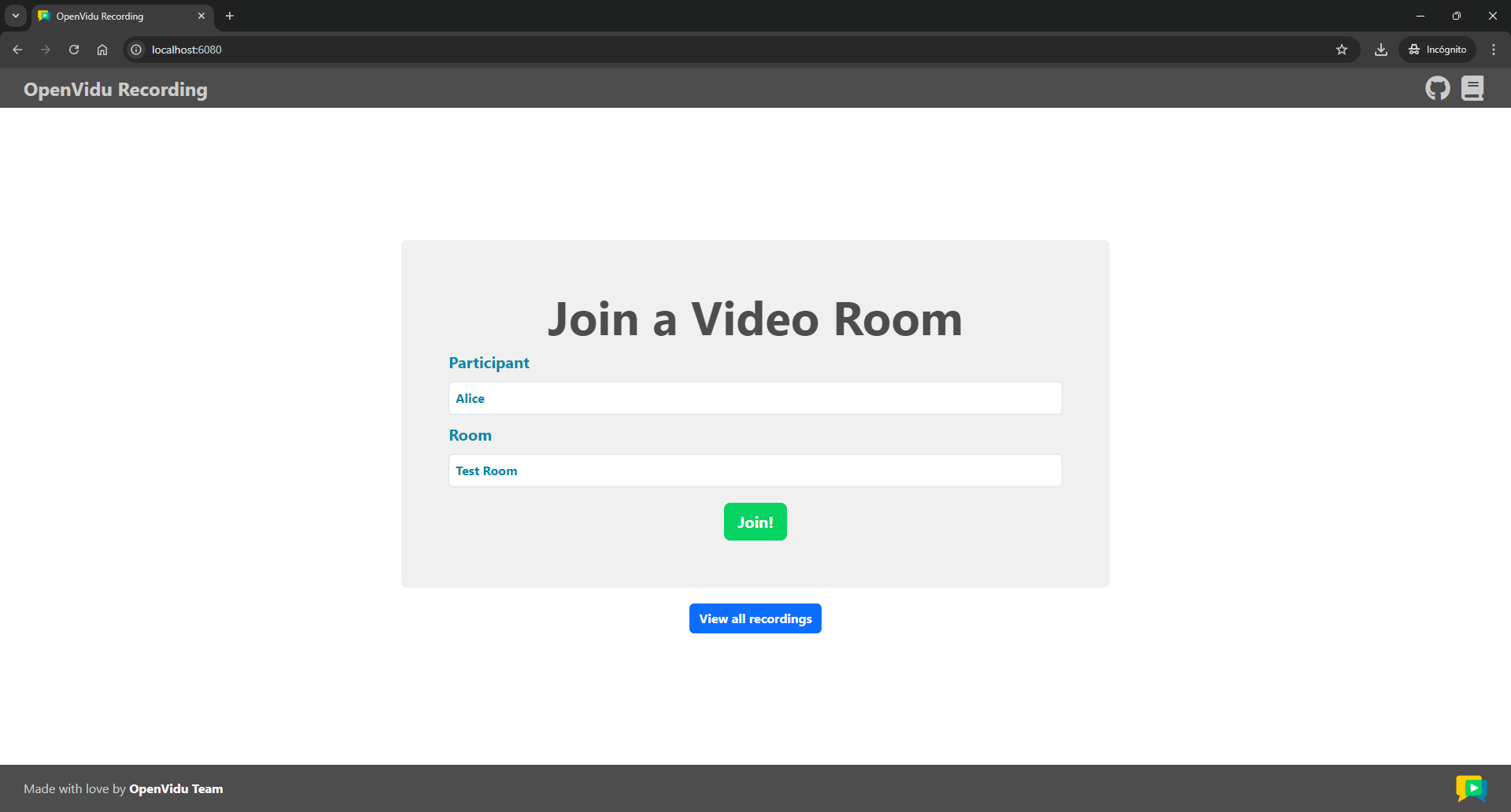

  • Start and stop recording a room.

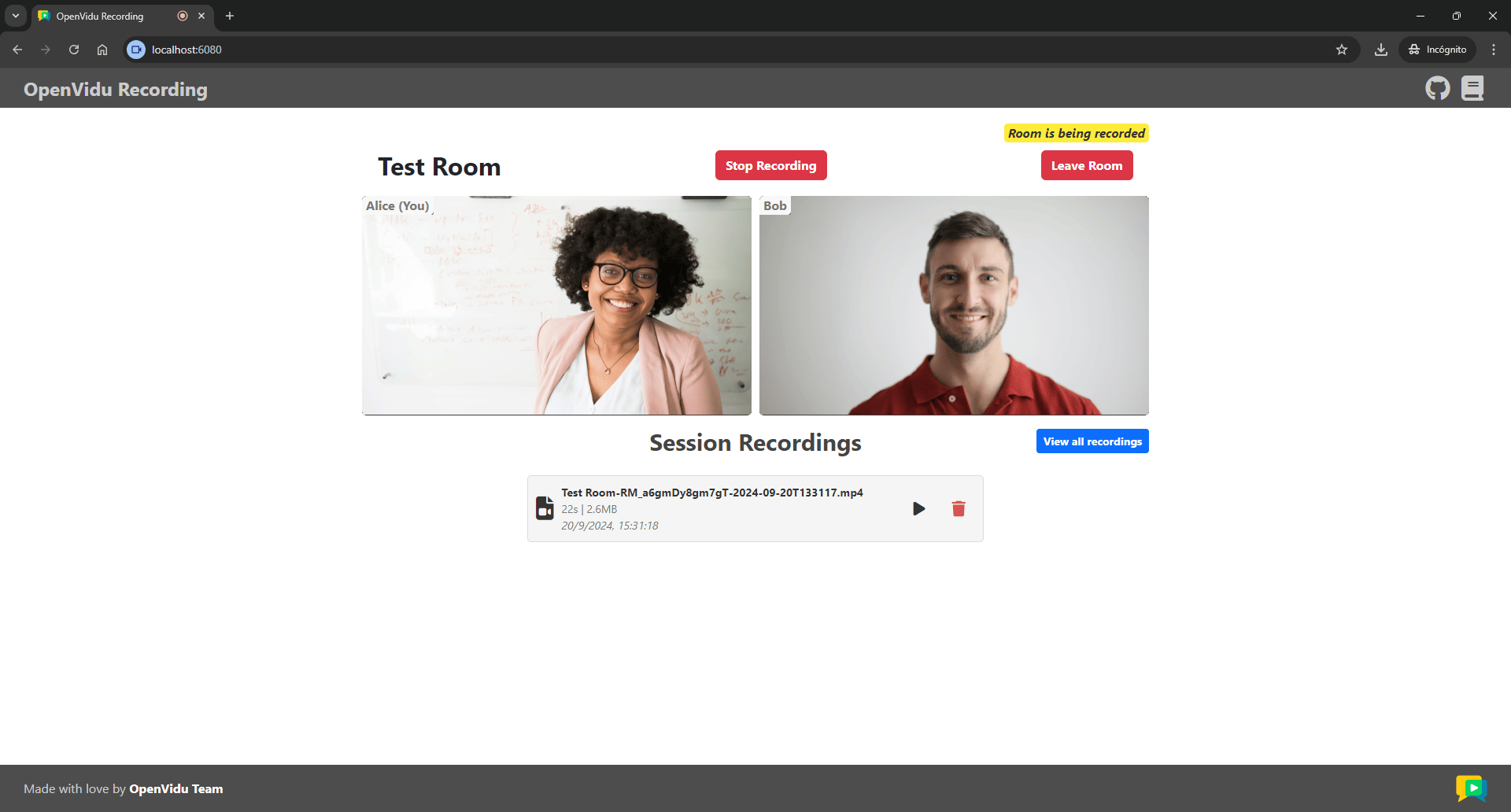

  • List all recordings in a room.

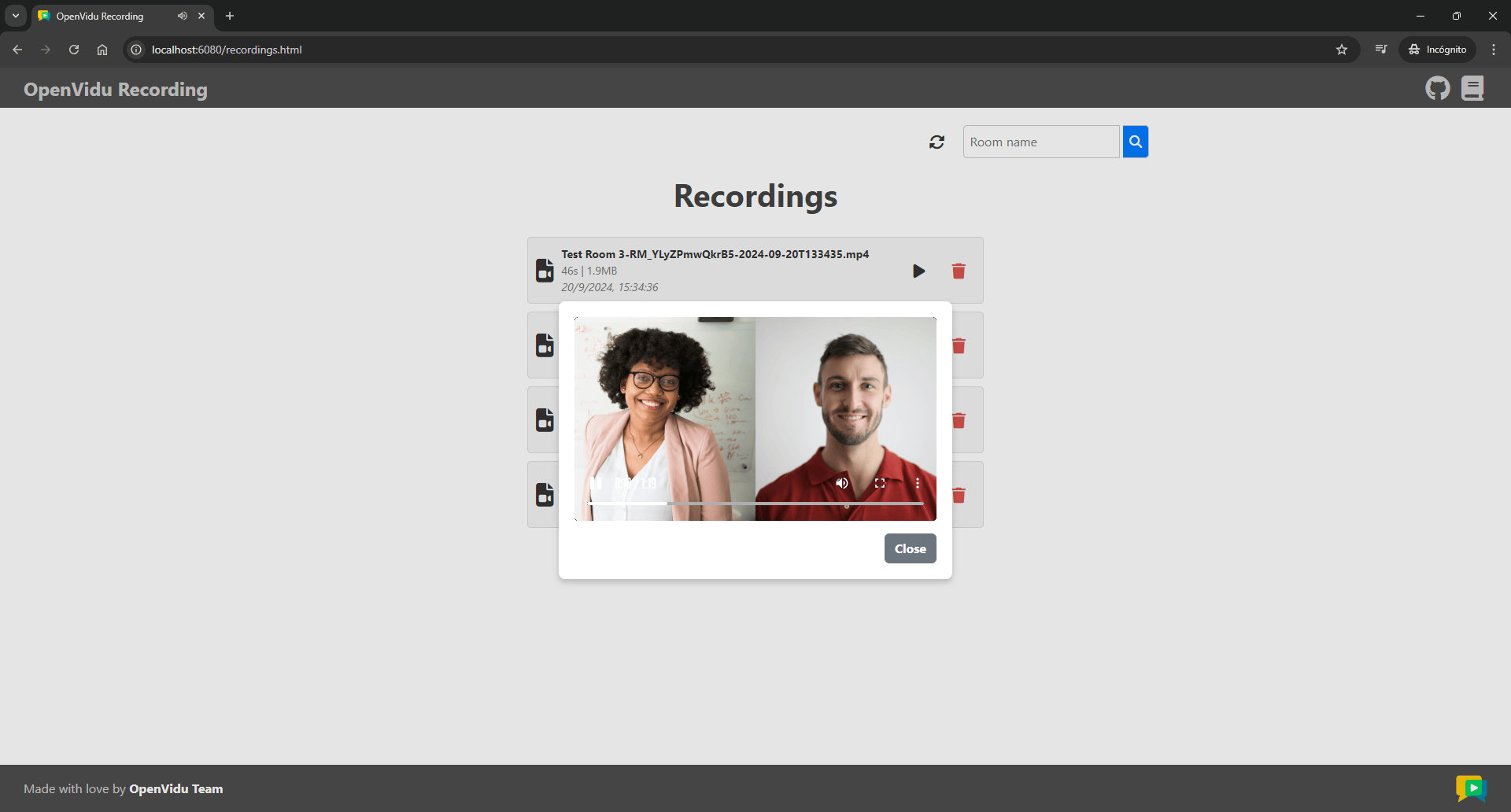

  • Play a recording.
  • Delete a recording.

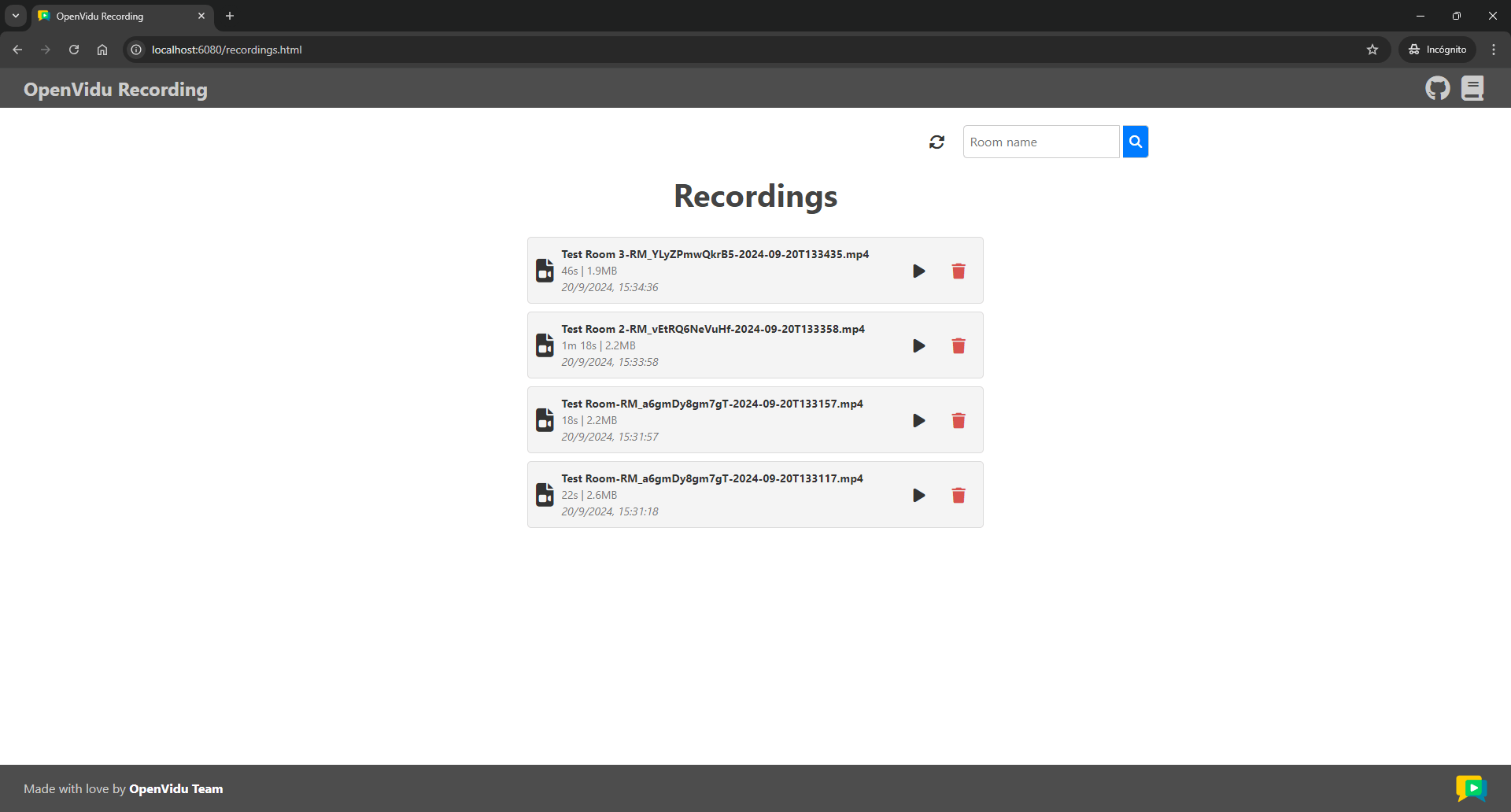

  • List all available recordings and filter them by room name.

Running this tutorial#

1. Run LiveKit Server and Egress#

You can run LiveKit and Egress locally or you can use their free tier of LiveKit Cloud, which already includes both services.

Alternatively, you can use OpenVidu, which is a fully compatible LiveKit distribution designed specifically for on-premises environments. It brings notable improvements in terms of performance, observability and development experience. For more information, visit What is OpenVidu?.

  1. Download OpenVidu

    git clone https://github.com/OpenVidu/openvidu-local-deployment

  2. Configure the local deployment

    cd openvidu-local-deployment/community
.\configure_lan_private_ip_windows.bat

    cd openvidu-local-deployment/community
./configure_lan_private_ip_macos.sh

    cd openvidu-local-deployment/community
./configure_lan_private_ip_linux.sh

  3. Run OpenVidu

    docker compose up

To use a production-ready OpenVidu deployment, visit the official OpenVidu deployment guide.

Configure Webhooks

This tutorial have an endpoint to receive webhooks from LiveKit. For this reason, when using a production deployment you need to configure webhooks to point to your local application server in order to make it work. Check the Send Webhooks to a Local Application Server section for more information.

Follow the official instructions to run LiveKit and Egress locally.

Configure Webhooks

This tutorial have an endpoint to receive webhooks from LiveKit. For this reason, when using LiveKit locally you need to configure webhooks to point to your application server in order to make it work. Check the Webhooks section from the official documentation and follow the instructions to configure webhooks.

Use your account in LiveKit Cloud.

Configure Webhooks

This tutorial have an endpoint to receive webhooks from LiveKit. For this reason, when using LiveKit Cloud you need to configure webhooks to point to your local application server in order to make it work. Check the Webhooks section from the official documentation and follow the instructions to configure webhooks.

Expose your local application server

In order to receive webhooks from LiveKit Cloud on your local machine, you need to expose your local application server to the internet. Tools like Ngrok, LocalTunnel, LocalXpose and Zrok can help you achieve this.

These tools provide you with a public URL that forwards requests to your local application server. You can use this URL to receive webhooks from LiveKit Cloud, configuring it as indicated above.

2. Download the tutorial code#

git clone https://github.com/OpenVidu/openvidu-livekit-tutorials.git

3. Run the application#

To run this application, you need Node installed on your device.

  1. Navigate into the application directory
cd openvidu-livekit-tutorials/advanced-features/openvidu-recording-basic-node
  1. Install dependencies
npm install
  1. Run the application
npm start

Once the server is up and running, you can test the application by visiting http://localhost:6080. You should see a screen like this:

Accessing your application from other devices in your local network

One advantage of running OpenVidu locally is that you can test your application with other devices in your local network very easily without worrying about SSL certificates.

Access your application client through https://xxx-yyy-zzz-www.openvidu-local.dev:6443, where xxx-yyy-zzz-www part of the domain is your LAN private IP address with dashes (-) instead of dots (.). For more information, see section Accessing your app from other devices in your network.

Understanding the code#

This application consists of two essential backend files under the src directory:

  • index.js: This file holds the server application and defines the REST API endpoints.
  • s3.service.js: This file encapsulates the operations to interact with the S3 bucket.

And the following essential frontend files under the public directory:

  • index.html: This is the client application's main HTML file.
  • app.js: This is the main JavaScript file that interacts with the server application and handles the client application's logic and functionality.
  • style.css: This file contains the client application's styling.
  • recordings.html: This file defines the HTML for the general recording page.

Backend#

The server application extends the Node.js server tutorial by adding the following REST API endpoints:

  • POST /recordings/start: Starts the recording of a room.
  • POST /recordings/stop: Stops the recording of a room.
  • GET /recordings: Lists all recordings stored in the S3 bucket. This endpoint also allows filtering recordings by room name or room ID.
  • GET /recordings/:recordingName: Retrieves a recording from the S3 bucket and returns it as a stream.
  • DELETE /recordings/:recordingName: This endpoint deletes a recording from the S3 bucket.

Before we dive into the code of each endpoint, let's first see the changes introduced in the index.js file:

index.js
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
const SERVER_PORT = process.env.SERVER_PORT || 6080;

// LiveKit configuration
const LIVEKIT_URL = process.env.LIVEKIT_URL || "http://localhost:7880"; // (1)!
const LIVEKIT_API_KEY = process.env.LIVEKIT_API_KEY || "devkey";
const LIVEKIT_API_SECRET = process.env.LIVEKIT_API_SECRET || "secret";

const RECORDINGS_PATH = process.env.RECORDINGS_PATH ?? "recordings/"; // (2)!
const RECORDING_FILE_PORTION_SIZE = 5 * 1024 * 1024; // (3)!

const app = express();

app.use(cors());
app.use(express.json());
app.use(express.raw({ type: "application/webhook+json" }));

// Set the static files location
const __filename = fileURLToPath(import.meta.url);
const __dirname = path.dirname(__filename);
app.use(express.static(path.join(__dirname, "../public"))); // (4)!
  1. The URL of the LiveKit server.
  2. The path where recordings will be stored in the S3 bucket.
  3. The portion size of the recording that will be sent to the client in each request. This value is set to 5 MB.
  4. Set the public directory as the static files location.

There are three new environment variables:

  • LIVEKIT_URL: The URL of the LiveKit server.
  • RECORDINGS_PATH: The path where recordings will be stored in the S3 bucket.
  • RECORDING_FILE_PORTION_SIZE: The portion size of the recording that will be sent to the client in each request.

Besides, the index.js file configures the server to serve static files from the public directory.

It also initializes the EgressClient, which will help interacting with Egress API to manage recordings, and the S3Service, which will help interacting with the S3 bucket:

index.js
59
60
const egressClient = new EgressClient(LIVEKIT_URL, LIVEKIT_API_KEY, LIVEKIT_API_SECRET);
const s3Service = new S3Service();

The POST /token endpoint has been modified to add the roomRecord permission to the access token, so that participants can start recording a room:

index.js
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
app.post("/token", async (req, res) => {
    const roomName = req.body.roomName;
    const participantName = req.body.participantName;

    if (!roomName || !participantName) {
        res.status(400).json({ errorMessage: "roomName and participantName are required" });
        return;
    }

    const at = new AccessToken(LIVEKIT_API_KEY, LIVEKIT_API_SECRET, {
        identity: participantName
    });
    at.addGrant({ roomJoin: true, room: roomName, roomRecord: true }); // (1)!
    const token = await at.toJwt();
    res.json({ token });
});
  1. Add the roomRecord permission to the access token.

Now let's explore the code for each recording feature:

Start recording#

The POST /recordings/start endpoint starts the recording of a room. It receives the room name of the room to record as parameter and returns the recording metadata:

index.js
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
app.post("/recordings/start", async (req, res) => {
    const { roomName } = req.body;

    if (!roomName) {
        res.status(400).json({ errorMessage: "roomName is required" });
        return;
    }

    const activeRecording = await getActiveRecordingByRoom(roomName); // (1)!

    // Check if there is already an active recording for this room
    if (activeRecording) {
        res.status(409).json({ errorMessage: "Recording already started for this room" }); // (2)!
        return;
    }

    // Use the EncodedFileOutput to save the recording to an MP4 file
    // (3)!
    const fileOutput = new EncodedFileOutput({
        fileType: EncodedFileType.MP4, // (4)!
        filepath: `${RECORDINGS_PATH}{room_name}-{room_id}-{time}` // (5)!
    });

    try {
        // Start a RoomCompositeEgress to record all participants in the room
        const egressInfo = await egressClient.startRoomCompositeEgress(roomName, { file: fileOutput }); // (6)!
        const recording = {
            name: egressInfo.fileResults[0].filename.split("/").pop(), // (7)!
            startedAt: Number(egressInfo.startedAt) / 1_000_000
        };
        res.json({ message: "Recording started", recording }); // (8)!
    } catch (error) {
        console.error("Error starting recording.", error);
        res.status(500).json({ errorMessage: "Error starting recording" });
    }
});
  1. The getActiveRecordingByRoom function retrieves the active recording for a room.
  2. If there is already an active recording for the room, the server returns a 409 Conflict status code.
  3. Use the EncodedFileOutput class to export the recording to an external file.
  4. Define the file type as MP4.
  5. Define the file path where the recording will be stored. The {room_name}, {room_id}, and {time} templates will be replaced by the actual room name, room ID and timestamp, respectively. Check out all available filename templates.
  6. Start a RoomCompositeEgress to record all participants in the room by calling the startRoomCompositeEgress method of the EgressClient with the roomName and fileOutput as parameters.
  7. Extract the recording name from the fileResults array.
  8. Return the recording metadata to the client.

This endpoint does the following:

  1. Obtains the roomName parameter from the request body. If it is not available, it returns a 400 error.

  2. Check if there is already an active recording for the room. If there is, it returns a 409 error to prevent starting a new recording. To accomplish this, we use the getActiveRecordingByRoom function, which lists all active egresses for a specified room by calling the listEgress method of the EgressClient with the roomName and active parameters, and then returns the egress ID of the first active egress found:

    index.js
    130
131
132
133
134
135
136
137
138
139
    const getActiveRecordingByRoom = async (roomName) => {
    try {
        // List all active egresses for the room
        const egresses = await egressClient.listEgress({ roomName, active: true });
        return egresses.length > 0 ? egresses[0].egressId : null;
    } catch (error) {
        console.error("Error listing egresses.", error);
        return null;
    }
};

  3. Initializes an EncodedFileOutput object to export the recording to an external file. It sets the file type as MP4 and defines the file path where the recording will be stored. The {room_name}, {room_id}, and {time} templates will be replaced by the actual room name, room ID, and timestamp, respectively. Check out all available filename templates.

    Saving recording metadata

    The EncodedFileOutput class allows you to save the recording metadata to an external file. If you don't explicitly set the disableManifest property to true, the metadata will be saved in the same folder and with the same name as the recording file, but with a .json extension. This metadata file will contain information such as the egress ID, the recording start time, and the name and ID of the room recorded.

    This information may be insufficient depending on your requirements (e.g., you can't get the recording duration). If this is the case, you can follow the steps described in the advanced recording tutorial, where we show how to save all necessary metadata in a separate file listening to webhook events.

  4. Starts a RoomCompositeEgress to record all participants in the room by calling the startRoomCompositeEgress method of the EgressClient with roomName and fileOutput as parameters.

  5. Extracts the recording name from the fileResults array.
  6. Returns the recording metadata to the client.

Stop recording#

The POST /recordings/stop endpoint stops the recording of a room. It receives the room name of the room to stop recording as a parameter and returns the updated recording metadata:

index.js
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
app.post("/recordings/stop", async (req, res) => {
    const { roomName } = req.body;

    if (!roomName) {
        res.status(400).json({ errorMessage: "roomName is required" });
        return;
    }

    const activeRecording = await getActiveRecordingByRoom(roomName); // (1)!

    // Check if there is an active recording for this room
    if (!activeRecording) {
        res.status(409).json({ errorMessage: "Recording not started for this room" }); // (2)!
        return;
    }

    try {
        // Stop the egress to finish the recording
        const egressInfo = await egressClient.stopEgress(activeRecording); // (3)!
        const file = egressInfo.fileResults[0];
        const recording = {
            name: file.filename.split("/").pop(),
            startedAt: Number(egressInfo.startedAt) / 1_000_000,
            size: Number(file.size)
        };
        res.json({ message: "Recording stopped", recording }); // (4)!
    } catch (error) {
        console.error("Error stopping recording.", error);
        res.status(500).json({ errorMessage: "Error stopping recording" });
    }
});
  1. The getActiveRecordingByRoom function retrieves the active recording for a room.
  2. If there is no active recording for the room, the server returns a 409 Conflict status code.
  3. Stop the egress to finish the recording by calling the stopEgress method of the EgressClient with the egress ID (activeRecording) as a parameter.
  4. Return the updated recording metadata to the client.

This endpoint does the following:

  1. Obtains the roomName parameter from the request body. If it is not available, it returns a 400 error.
  2. Retrieves all active egresses for the room. If there is no active egress for the room, it returns a 409 error to prevent stopping a non-existent recording.
  3. Extracts the egressId from the active egress.
  4. Stops the egress to finish the recording by calling the stopEgress method of the EgressClient with the egress ID (activeRecording) as a parameter.
  5. Returns the updated recording metadata to the client.

List recordings#

The GET /recordings endpoint lists all recordings stored in the S3 bucket. This endpoint also allows filtering recordings by room name or room ID:

index.js
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
app.get("/recordings", async (req, res) => {
    const roomName = req.query.roomName?.toString();
    const roomId = req.query.roomId?.toString();

    try {
        const keyStart = RECORDINGS_PATH + (roomName ? `${roomName}-` + (roomId ? roomId : "") : ""); // (1)!
        const keyEnd = ".mp4.json";
        const regex = new RegExp(`^${keyStart}.*${keyEnd}$`); // (2)!

        // List all egress metadata files in the recordings path that match the regex
        const payloadKeys = await s3Service.listObjects(RECORDINGS_PATH, regex); // (3)!
        const recordings = await Promise.all(payloadKeys.map((payloadKey) => getRecordingInfo(payloadKey))); // (4)!
        const sortedRecordings = filterAndSortRecordings(recordings, roomName, roomId); // (5)!
        res.json({ recordings: sortedRecordings }); // (6)!
    } catch (error) {
        console.error("Error listing recordings.", error);
        res.status(500).json({ errorMessage: "Error listing recordings" });
    }
});
  1. Define the start of the key (path) depending on the roomName and roomId query parameters.
  2. Create a regex pattern with the start and end of the key.
  3. List all Egress metadata files in the recordings path in the S3 bucket that match the regex.
  4. Retrieve the recording metadata for each recording that matches the regex.
  5. Filter the recordings by room name and room ID and sort them by start time.
  6. Return the list of recordings to the client.

This endpoint does the following:

  1. Extracts the roomName and roomId query parameters from the request.
  2. Defines the start of the key (path) depending on the roomName and roomId query parameters.
  3. Creates a regex pattern with the start and end of the key.
  4. Lists all Egress metadata files in the recordings path in the S3 bucket that match the regex. To accomplish this, we use the listObjects method of the S3Service with the RECORDINGS_PATH and regex as parameters.

  5. Retrieves the recording metadata for each recording that matches the regex. To accomplish this, we use the getRecordingInfo function, which retrieves the egress metadata file as JSON and the recording file size by calling the getObjectAsJson and getObjectSize methods of the S3Service, respectively. It then extracts the recording name from the recording key and returns the recording metadata:

    index.js
    161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
    const getRecordingInfo = async (payloadKey) => {
    // Get the egress metadata file as JSON
    const data = await s3Service.getObjectAsJson(payloadKey); // (1)!

    // Get the recording file size
    const recordingKey = payloadKey.replace(".json", "");
    const size = await s3Service.getObjectSize(recordingKey); // (2)!

    const recordingName = recordingKey.split("/").pop();
    const recording = {
        id: data.egress_id,
        name: recordingName,
        roomName: data.room_name,
        roomId: data.room_id,
        startedAt: Number(data.started_at) / 1000000,
        size: size
    };
    return recording;
};
    1. Get the egress metadata file as JSON.
    2. Get the recording file size.

  6. Filter the recordings by room name and room ID and sort them by start time. To accomplish this, we use the filterAndSortRecordings function:

    index.js
    181
182
183
184
185
186
187
188
189
190
191
    const filterAndSortRecordings = (recordings, roomName, roomId) => {
    let filteredRecordings = recordings;

    if (roomName || roomId) {
        filteredRecordings = recordings.filter((recording) => {
            return (!roomName || recording.roomName === roomName) && (!roomId || recording.roomId === roomId); // (1)!
        });
    }

    return filteredRecordings.sort((a, b) => b.startedAt - a.startedAt); // (2)!
};
    1. Filter the recordings by room name and room ID if they are provided.
    2. Sort the recordings by start time in descending order.

  7. Returns the list of recordings to the client.

Get recording#

The GET /recordings/:recordingName endpoint retrieves a specific portion of a recording from the S3 bucket and returns it as a stream. The server sends the recording file in portions of 5 MB each time the client requests a range of the recording file. This is done to prevent loading the entire recording file into memory and to allow the client to play the recording while it is being downloaded and seek to a specific time:

index.js
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
app.get("/recordings/:recordingName", async (req, res) => {
    const { recordingName } = req.params;
    const { range } = req.headers;
    const key = RECORDINGS_PATH + recordingName;
    const exists = await s3Service.exists(key); // (1)!

    if (!exists) {
        res.status(404).json({ errorMessage: "Recording not found" });
        return;
    }

    try {
        // Get the recording file from S3
        const { stream, size, start, end } = await getRecordingStream(recordingName, range); // (2)!

        // Set the response headers
        res.status(206); // (3)!
        res.setHeader("Cache-Control", "no-cache"); // (4)!
        res.setHeader("Content-Type", "video/mp4"); // (5)!
        res.setHeader("Accept-Ranges", "bytes"); // (6)!
        res.setHeader("Content-Range", `bytes ${start}-${end}/${size}`); // (7)!
        res.setHeader("Content-Length", end - start + 1); // (8)!

        // Pipe the recording file to the response
        body.pipe(res).on("finish", () => res.end()); // (9)!
    } catch (error) {
        console.error("Error getting recording.", error);
        res.status(500).json({ errorMessage: "Error getting recording" });
    }
});
  1. Check if the recording exists in the S3 bucket.
  2. Get the recording file from the S3 bucket.
  3. Set the response status code to 206 Partial Content.
  4. Set the Cache-Control header as no-cache.
  5. Set the Content-Type header as video/mp4.
  6. Set the Accept-Ranges header as bytes.
  7. Set the Content-Range header with the start and end of the recording file and its size.
  8. Set the Content-Length header as the size of the recording file portion.
  9. Pipe the recording file to the response.

This endpoint does the following:

  1. Extracts the recordingName parameter from the request.
  2. Checks if the recording exists in the S3 bucket by calling the exists method of the S3Service with the key as a parameter. If the recording does not exist, it returns a 404 error.

  3. Gets the requested range of the recording file by calling the getRecordingStream function:

    index.js
    224
225
226
227
228
229
230
231
232
233
234
235
236
    const getRecordingStream = async (recordingName, range) => {
    const key = RECORDINGS_PATH + recordingName;
    const size = await s3Service.getObjectSize(key); // (1)!

    // Get the requested range
    const parts = range?.replace(/bytes=/, "").split("-");
    const start = range ? parseInt(parts[0], 10) : 0; // (2)!
    const endRange = parts[1] ? parseInt(parts[1], 10) : start + RECORDING_FILE_PORTION_SIZE; // (3)!
    const end = Math.min(endRange, size - 1); // (4)!

    const stream = await s3Service.getObject(key, { start, end }); // (5)!
    return { stream, size, start, end };
};
    1. Get the size of the recording file.
    2. Get the start of the requested range.
    3. Get the end of the requested range or set it to the start plus the established portion size.
    4. Get the minimum between the end of the requested range and the size of the recording file minus one.
    5. Get the recording file from the S3 bucket with the requested range.

    This function does the following:

    1. Gets the size of the recording file by calling the getObjectSize method of the S3Service with the key as a parameter.
    2. Extracts the start of the requested range from the range header.
    3. Extracts the end of the requested range from the range header. If the end is not provided, it sets the end to the start plus the established portion size.
    4. Gets the minimum between the end of the requested range and the size of the recording file minus one. This is done to prevent requesting a range that exceeds the recording file size.
    5. Gets the recording file from the S3 bucket with the requested range by calling the getObject method of the S3Service with the key and range as parameters.

  4. Sets the response headers:

    • Cache-Control: no-cache.
    • Content-Type: video/mp4.
    • Accept-Ranges: bytes.
    • Content-Range: The start and end of the recording file and its size.
    • Content-Length: The size of the recording file portion.

  5. Pipes the recording file to the response.

Direct access to S3 bucket

With this approach, the backend acts as a proxy between the client and S3, which may result in increased server resource usage. To avoid this, it is more efficient to provide the client with a presigned URL, allowing direct access to the recording files from the S3 bucket. In the advanced recording tutorial, we show how to implement this method, along with a discussion of its advantages and disadvantages.

Delete recording#

The DELETE /recordings/:recordingName endpoint deletes a recording from the S3 bucket:

index.js
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
app.delete("/recordings/:recordingName", async (req, res) => {
    const { recordingName } = req.params;
    const key = RECORDINGS_PATH + recordingName;
    const exists = await s3Service.exists(key); // (1)!

    if (!exists) {
        res.status(404).json({ errorMessage: "Recording not found" });
        return;
    }

    try {
        // Delete the recording file and metadata file from S3
        await Promise.all([s3Service.deleteObject(key), s3Service.deleteObject(`${key}.json`)]); // (2)!
        res.json({ message: "Recording deleted" });
    } catch (error) {
        console.error("Error deleting recording.", error);
        res.status(500).json({ errorMessage: "Error deleting recording" });
    }
});
  1. Check if the recording exists in the S3 bucket.
  2. Delete the recording file and metadata file from the S3 bucket.

This endpoint does the following:

  1. Extracts the recordingName parameter from the request.
  2. Checks if the recording exists in the S3 bucket by calling the exists method of the S3Service with the key as a parameter. If the recording does not exist, it returns a 404 error.
  3. Deletes the recording file and metadata file from the S3 bucket by calling the deleteObject method of the S3Service with the key and ${key}.json as a parameter, respectively.

S3 service#

Finally, let's take a look at the s3.service.js file, which encapsulates the operations to interact with the S3 bucket:

s3.service.js
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
// S3 configuration
const S3_ENDPOINT = process.env.S3_ENDPOINT || "http://localhost:9000"; // (1)!
const S3_ACCESS_KEY = process.env.S3_ACCESS_KEY || "minioadmin"; // (2)!
const S3_SECRET_KEY = process.env.S3_SECRET_KEY || "minioadmin"; // (3)!
const AWS_REGION = process.env.AWS_REGION || "us-east-1"; // (4)!
const S3_BUCKET = process.env.S3_BUCKET || "openvidu"; // (5)!

export class S3Service {
    static instance;

    constructor() {
        if (S3Service.instance) {
            return S3Service.instance;
        }
        // (6)!
        this.s3Client = new S3Client({
            endpoint: S3_ENDPOINT,
            credentials: {
                accessKeyId: S3_ACCESS_KEY,
                secretAccessKey: S3_SECRET_KEY
            },
            region: AWS_REGION,
            forcePathStyle: true
        });

        S3Service.instance = this;
        return this;
    }
    // (7)!
    async exists(key) {
        try {
            await this.headObject(key);
            return true;
        } catch (error) {
            return false;
        }
    }
    // (8)!
    async headObject(key) {
        const params = {
            Bucket: S3_BUCKET,
            Key: key
        };
        const command = new HeadObjectCommand(params);
        return this.run(command);
    }
    // (9)!
    async getObjectSize(key) {
        const { ContentLength: size } = await this.headObject(key);
        return size;
    }
    // (10)!
    async getObject(key, range) {
        const params = {
            Bucket: S3_BUCKET,
            Key: key,
            Range: range ? `bytes=${range.start}-${range.end}` : undefined
        };
        const command = new GetObjectCommand(params);
        const { Body: body } = await this.run(command);
        return body;
    }
    // (11)!
    async getObjectAsJson(key) {
        const body = await this.getObject(key);
        const stringifiedData = await body.transformToString();
        return JSON.parse(stringifiedData);
    }
    // (12)!
    async listObjects(prefix, regex) {
        const params = {
            Bucket: S3_BUCKET,
            Prefix: prefix
        };
        const command = new ListObjectsV2Command(params);
        const { Contents: objects } = await this.run(command);

        // Filter objects by regex and return the keys
        return objects?.filter((object) => regex.test(object.Key)).map((payload) => payload.Key) ?? [];
    }
    // (13)!
    async deleteObject(key) {
        const params = {
            Bucket: S3_BUCKET,
            Key: key
        };
        const command = new DeleteObjectCommand(params);
        return this.run(command);
    }
    // (14)!
    async run(command) {
        return this.s3Client.send(command);
    }
}
  1. The URL of the S3 server.
  2. The access key of the S3 server.
  3. The secret key of the S3 server.
  4. The AWS region of the S3 server.
  5. The name of the S3 bucket.
  6. Initialize the S3Client with the provided configuration.
  7. Check if an object exists in the S3 bucket.
  8. Retrieve the metadata of an object in the S3 bucket.
  9. Retrieve the size of an object in the S3 bucket.
  10. Retrieve a specified range of bytes from an object in the S3 bucket.
  11. Retrieve an object from the S3 bucket as JSON.
  12. List objects in the S3 bucket that match a regex pattern.
  13. Delete an object from the S3 bucket.
  14. Execute an S3 command.

This file loads environment variables for the S3 configuration:

  • S3_ENDPOINT: The URL of the S3 server.
  • S3_ACCESS_KEY: The access key of the S3 server.
  • S3_SECRET_KEY: The secret key of the S3 server.
  • AWS_REGION: The AWS region of the S3 server.
  • S3_BUCKET: The name of the S3 bucket.

Then, it defines the S3Service class as a singleton, which initializes the S3Client with the provided configuration. The class encapsulates the following methods to interact with the S3 bucket:

  • exists: Checks if an object exists in the S3 bucket.
  • headObject: Retrieves the metadata of an object in the S3 bucket.
  • getObjectSize: Retrieves the size of an object in the S3 bucket.
  • getObject: Retrieves an object from the S3 bucket.
  • getObjectAsJson: Retrieves an object from the S3 bucket as JSON.
  • listObjects: Lists objects in the S3 bucket that match a regex pattern.
  • deleteObject: Deletes an object from the S3 bucket.
  • run: Executes an S3 command.

Frontend#

The client application extends the JavaScript client tutorial by adding recording features, introducing new buttons to facilitate actions such as starting and stopping recording a room, as well as listing, playing and deleting recordings. When these newly introduced buttons are interacted with, the client triggers requests to the REST API endpoints of the server application.

In order to update the user interface of all participants in the room according to the recording status, the client application subscribes to the RoomEvent.RecordingStatusChanged event, which is triggered when the room changes from being recorded to not being recorded, and vice versa. When this event is triggered, the updateRecordingInfo function is called to update the recording information of the room displayed on the screen. This function is also called when a participant joins the room, using the current value of the room.recording property at that moment. This is done in the joinRoom function of the app.js file:

Limitations of the RoomEvent.RecordingStatusChanged event

By using the RoomEvent.RecordingStatusChanged event, we can only detect when the recording has started or stopped, but not other states like starting, stopping or failed. Additionally, when the recording stops, the event is not triggered until the recorder participant leaves the room, causing a delay of 20 seconds approximately between the stop and when participants are notified.

To overcome these limitations, you can follow the steps described in the advanced recording tutorial, where we implement a custom notification system. This system informs participants about the recording status by listening to webhook events and updating room metadata.

app.js
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
async function joinRoom() {
    // Disable 'Join' button
    document.getElementById("join-button").disabled = true;
    document.getElementById("join-button").innerText = "Joining...";

    // Initialize a new Room object
    room = new LivekitClient.Room();

    // Specify the actions when events take place in the room
    // On every new Track received...
    room.on(LivekitClient.RoomEvent.TrackSubscribed, (track, _publication, participant) => {
        addTrack(track, participant.identity);
    });

    // On every new Track destroyed...
    room.on(LivekitClient.RoomEvent.TrackUnsubscribed, (track, _publication, participant) => {
        track.detach();
        document.getElementById(track.sid)?.remove();

        if (track.kind === "video") {
            removeVideoContainer(participant.identity);
        }
    });

    // When recording status changes...
    room.on(LivekitClient.RoomEvent.RecordingStatusChanged, async (isRecording) => {
        await updateRecordingInfo(isRecording);
    });

    try {
        // Get the room name and participant name from the form
        const roomName = document.getElementById("room-name").value;
        const userName = document.getElementById("participant-name").value;

        // Get a token from your application server with the room name and participant name
        const token = await getToken(roomName, userName);

        // Connect to the room with the LiveKit URL and the token
        await room.connect(LIVEKIT_URL, token);

        // Hide the 'Join room' page and show the 'Room' page
        document.getElementById("room-title").innerText = roomName;
        document.getElementById("join").hidden = true;
        document.getElementById("room").hidden = false;

        // Publish your camera and microphone
        await room.localParticipant.enableCameraAndMicrophone();
        const localVideoTrack = this.room.localParticipant.videoTrackPublications.values().next().value.track;
        addTrack(localVideoTrack, userName, true);

        // Update recording info
        await updateRecordingInfo(room.isRecording);
    } catch (error) {
        console.log("There was an error connecting to the room:", error.message);
        await leaveRoom();
    }
}

The updateRecordingInfo function updates the recording information of the room by changing the recording button's text and color according to the recording status. It also shows or hides the alert message that informs the user that the room is being recorded. Finally, it updates the recording list by calling the listRecordings function.

This function retrieves all recordings available for the room from the backend and displays their relevant information by invoking the showRecordingList function:

app.js
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
function showRecordingList(recordings) {
    const recordingsList = document.getElementById("recording-list");

    if (recordings.length === 0) {
        recordingsList.innerHTML = "<span>There are no recordings available</span>";
    } else {
        recordingsList.innerHTML = "";
    }

    recordings.forEach((recording) => {
        const recordingName = recording.name;
        const recordingSize = formatBytes(recording.size ?? 0);
        const recordingDate = new Date(recording.startedAt).toLocaleString();

        const recordingContainer = document.createElement("div");
        recordingContainer.className = "recording-container";
        recordingContainer.id = recordingName;

        recordingContainer.innerHTML = `
            <i class="fa-solid fa-file-video"></i>
            <div class="recording-info">
                <p class="recording-name">${recordingName}</p>
                <p class="recording-size">${recordingSize}</p>
                <p class="recording-date">${recordingDate}</p>
            </div>
            <div class="recording-actions">
                <button title="Play" class="icon-button" onclick="displayRecording('${recordingName}')">
                    <i class="fa-solid fa-play"></i>
                </button>
                <button title="Delete" class="icon-button delete-button" onclick="deleteRecording('${recordingName}')">
                    <i class="fa-solid fa-trash"></i>
                </button>
            </div>
        `;

        recordingsList.append(recordingContainer);
    });
}

The showRecordingList function creates a new div element for each recording available in the room and appends it to the recording-list container. Each div element contains the recording name, size, and start date, as well as buttons to play and delete the recording.

Recording deletion

When a recording is deleted, it is removed from the recording list, but only for the user who initiated the deletion. Other users will continue to see the recording in their list until it is refreshed.

In the advanced recording tutorial, we show how to implement a custom notification system that alerts all participants of a recording's deletion by sending data messages.

When the user clicks the play button, the displayRecording function is called to play the recording. This function opens a dialog window with an embedded video element and sets the source of the video to the get recording endpoint of the server application:

app.js
356
357
358
359
360
361
function displayRecording(recordingName) {
    const recordingVideoDialog = document.getElementById("recording-video-dialog");
    recordingVideoDialog.showModal();
    const recordingVideo = document.getElementById("recording-video");
    recordingVideo.src = `/recordings/${recordingName}`;
}
index.html
94
95
96
97
<dialog id="recording-video-dialog">
    <video id="recording-video" autoplay controls></video>
    <button class="btn btn-secondary" id="close-recording-video-dialog" onclick="closeRecording()">Close</button>
</dialog>

General recording page#

The recordings.html file defines the HTML for the general recording page. This page lists all available recordings from all rooms and allows the user to filter them by room name. It also provides buttons to play and delete each recording.
